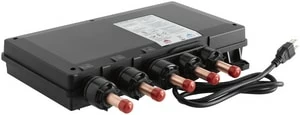

Name: Top 10 🔥 KOHLER DTV+™ Thermoplastic Digital Thermostatic Valve 🧨
SKU: 5070186
Availability: InStock

New

Original price was: $408.00.Current price is: $90.99.

Designed to work with a DTV+™ digital system either individually or with a second digital valve (two, three or six-port valve)

For use in either showering and/or bathing applications

Up to 13 gpm flow rate with maximum flow of 8.0 gpm from one outlet

Hot/cold supply inlets: 1/2″

Three independently controllable 1/2″ outlets

Pre-wired with three-prong plug for connection to 110V AC receptacle

Mounts with in standard 2″ x 4″ walls

Requires Kohler® K-99695 DTV+™ system controller module (sold separately)

ADA Compliant	No
IAPMO Listed	No
Volts	110V
Valve Type	Thermostatic Valve
Valve Size	1/2 in
UL Listed	UL 1951
Trim Only	No
Power Source	Electric
Maximum Temperature	104
Material Type	Thermoplastic
Material	Plastic
Length	15-1/8 in
Installation Type	Wall Mount
Height	2-11/16 in
AMP	15
GSA Approved	No
Flow Rate	13 gpm
End Connections	Sweat
End Connection 3	Sweat
End Connection 2	Sweat
End Connection 1	Sweat
Cord Length	25 ft
Collection	DTV+™
CSA Certified	CSA B125.1, CSA B125.16
Brand Model Compatibility	K-99695 DTV+™ System Controller Module
ASSE Standards	ASSE 1016
ASME Specifications	ASME A112.1016, ASME A112.18.1
Width	15-1/8 in
